Neutrik DIE-R-BNC-PS
MPN: DIE-R-BNC-PS
Item # DIE-R-BNC-PS

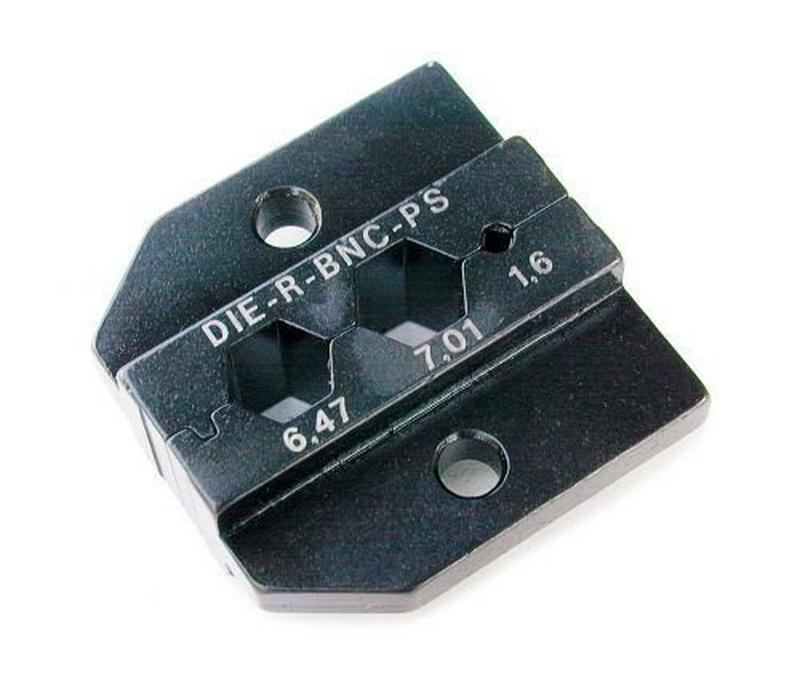

HX-R-BNC crimping die - 6.47mm (A), 7.01mm (B)
Key USP
| Cable Type | BNC |
|---|
Returns:
Resellers wishing to return a product to SFM must first obtain a return authorization number from customer service. All returns are at the reseller's expense and must be shipped with the return authorization number indicated on the shipping label. Restocking fees apply, unless SFM shipped the product in error or it arrived damaged or defective.
Payments:
Terms and conditions apply.
Shop with confidence
HX-R-BNC crimping die - 6.47mm (A), 7.01mm (B)
Description
Crimp tool for HX-R-BNC
Pin crimping: 1.60 mm
Shield and jacket: HEX crimp 6.47 mm (A), 7.01 mm (B)
Pin crimping: 1.60 mm
Shield and jacket: HEX crimp 6.47 mm (A), 7.01 mm (B)
Technical Specification
| Colour | Black |
|---|---|
| Cable Type | BNC |
Key Features
- Pin Crimp Size: precise 1.60 mm square crimp cavity for the connector pin.
- Shield and Jacket Crimp: Includes dual hex crimp cavities measuring 6.47 mm (A) and 7.01 mm (B) for cable ferrules.
- Tool Compatibility: designed to snap into the Neutrik HX-R-BNC ratchet hand crimp tool frame.
- Standard Compliance: Cavities conform to IEC 60803 specifications for secure and reliable terminations.
- Application Design: Built for assembling coaxial BNC connectors (such as Rear Twist and Push-Pull series) onto matching video/audio cables.
