Shure UA834WB
MPN: UA834WB
Item # UA834WB

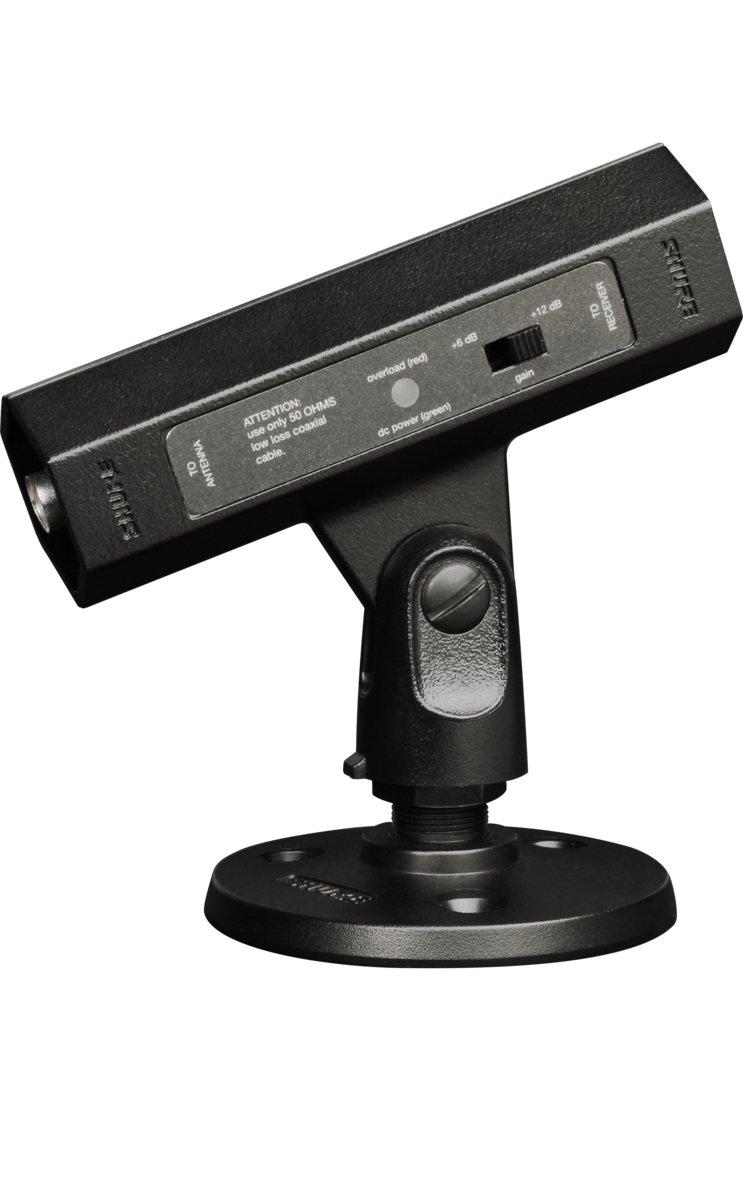

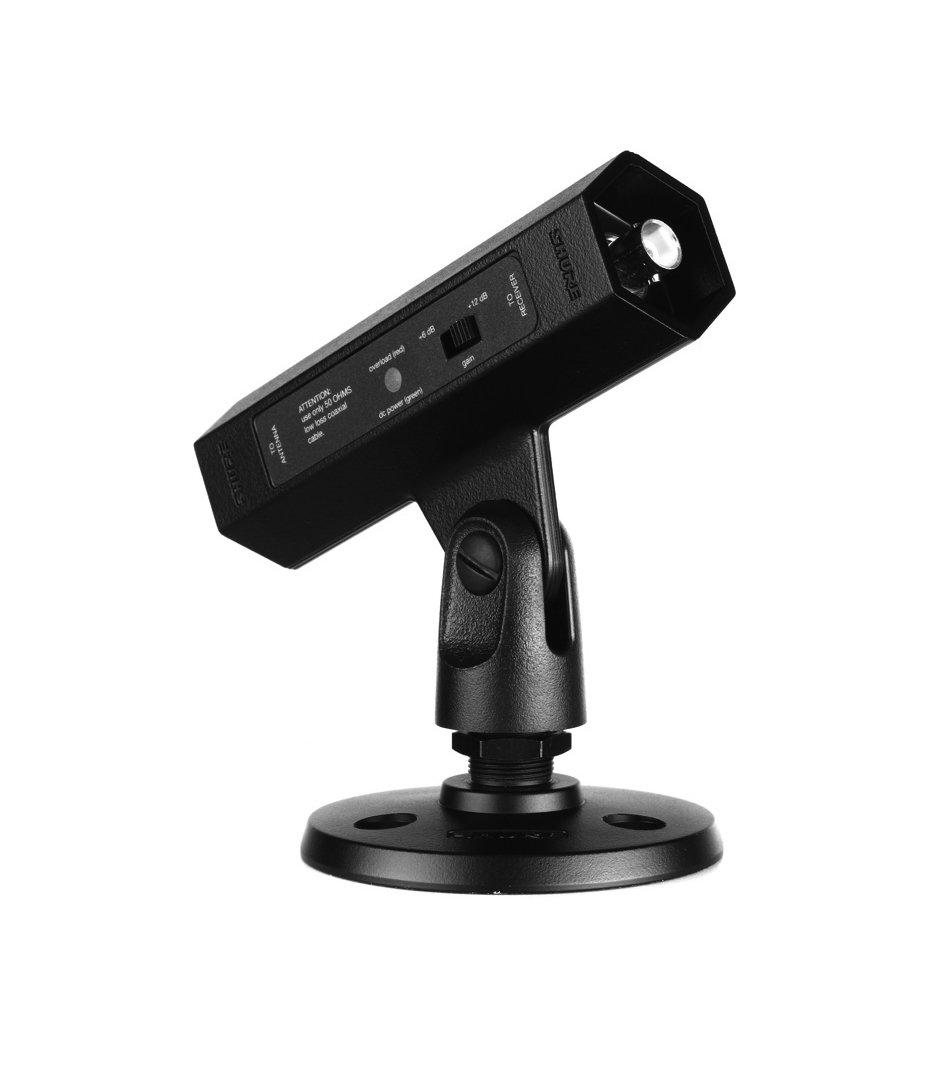

UA834WB - In-Line Antenna Amplifier, 470-900MHZ
Returns:
Resellers wishing to return a product to SFM must first obtain a return authorization number from customer service. All returns are at the reseller's expense and must be shipped with the return authorization number indicated on the shipping label. Restocking fees apply, unless SFM shipped the product in error or it arrived damaged or defective.
Payments:
Terms and conditions apply.
Shop with confidence
UA834WB - In-Line Antenna Amplifier, 470-900MHZ
Description
The Shure UA834 is a low-noise, in-line VHF and UHF antenna amplifier. It is intended for remote-mounting antennas to a Shure receiver or Model UA845UWB, or UA844+ distribution amplifier in a large installation.
UA834 replaces UA830. In-Line UHF Antenna Amplifier for remote mounting antennas with BLX4R, SLX4, QLX-D, ULX-D, UR4 and AXT400 receivers or UA844+ and UA845UWB Antenna Distribution Systems. (470 - 952 MHz)
The Shure UA834 is a low-noise, in-line VHF and UHF antenna amplifier. It is intended for remote-mounting antennas to a Shure receiver or Model UA845UWB, or UA844+ distribution amplifier in a large installation.
The unit receives power through its output port from the Shure receiver, UABIAST or distribution amplifier. When an antenna is remote mounted, the UA834 amplifies the received radio signals to compensate for insertion loss in the coaxial cable. A gain selector switch adjusts for longer lengths of coaxial cable.
UA834 replaces UA830. In-Line UHF Antenna Amplifier for remote mounting antennas with BLX4R, SLX4, QLX-D, ULX-D, UR4 and AXT400 receivers or UA844+ and UA845UWB Antenna Distribution Systems. (470 - 952 MHz)
The Shure UA834 is a low-noise, in-line VHF and UHF antenna amplifier. It is intended for remote-mounting antennas to a Shure receiver or Model UA845UWB, or UA844+ distribution amplifier in a large installation.
The unit receives power through its output port from the Shure receiver, UABIAST or distribution amplifier. When an antenna is remote mounted, the UA834 amplifies the received radio signals to compensate for insertion loss in the coaxial cable. A gain selector switch adjusts for longer lengths of coaxial cable.
Technical Specification
| Material | Metal |
|---|---|
| Packaged depth | 279.4 mm |
| Packaged height | 88.9 mm |
| Packaged weight | 0.42 kg |
| Packaged width | 133.4 mm |
| Product Depth (main unit) | 112 mm |
| Product Height (main unit) | 67 mm |
| Product Weight | 0.024 kg |
| Product Width (main unit) | 32 mm |
Key Features
- Compatible with the Shure Model UR4 ULX wireless microphone receiver and the Shure Model UA845UWB, or UA844+ Antenna Distribution System
- Mountable on supplied desk-/wall-mount or on a microphone stand
- Two-position gain selector switch to adjust for longer coaxial cable lengths (6dB position for cables under 7 1/2m [25 ft], 12dB position for cables over 7 1/2m [25 ft]
